Relay Demonstration Manufacturer,Supplier and Exporter in India
Product Code : SCL-E-11379
A useful property of this unit is that the circuit powering the coil is easily seen to be completely separate from the circuit switched on by the relay.
This is one of the reasons relays are used where a safe low voltage circuit can be used to control a high voltage circuit.

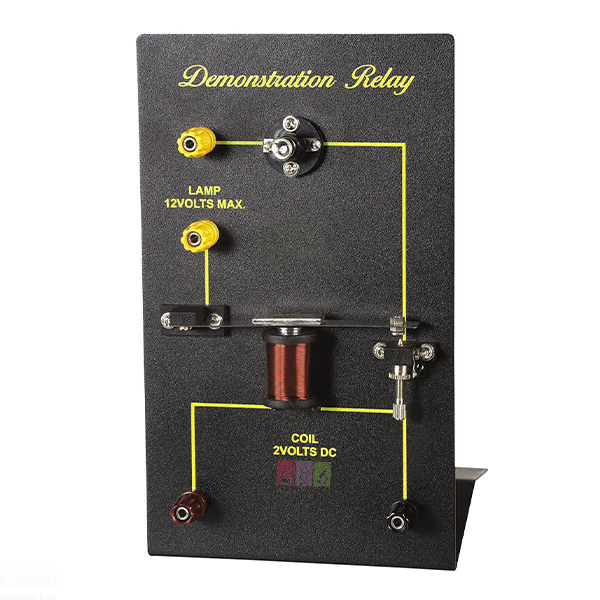

The Relay Demonstration Unit Science Lab India allows the investigation and study of how a relay functions, in a clear and practical manner.
This field attracts the iron armature whose end makes the contact, completing the circuit and illuminating the lamp.
When the current is switched off, the contact will open again, switching the circuit off.
When a current flows through the coil an electro-magnetic field is produced.
Specifications:
• Switched supply voltage: 12 V Max
• Control input voltage: 2 V DC
