Fine Beam Tube (Neon-Filled) with Connector Base Manufacturer,Supplier and Exporter in India

The gas atoms are ionised along the path of the electrons and a narrow, well-defined, luminescent beam is produced. Incorporated measurement marks facilitate a parallax-free determination of the diameter of the circular path of the beam deflected in the magnetic field.

The Fine Beam Tube is used for investigating the deflection of cathode rays in a uniform magnetic field produced Science Lab India by a pair of 300mm Helmholtz coils. In addition, it can also be used for quantitative determination of the specific charge of an electron e/m.

Located inside a glass bulb with a neon residual gas atmosphere is an electron gun, which consists of an indirectly heated oxide cathode, a Wehnelt cylinder and a perforated anode.

The protective circuit prevents excessive voltages from damaging the heater filament and ensures a "smooth" switch-on response once the voltage is applied. Requires a 0-300 V DC power supply and 300 mm Helmholtz coils.

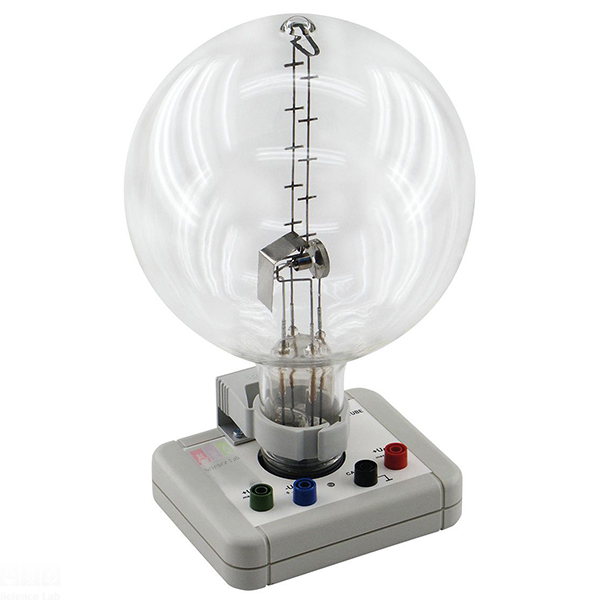

The Fine Beam Tube Science Lab India is mounted on a base with coloured connectors. In order to protect the tube, a protective circuit is built into the base, which shuts off any voltage in excess of the base's pre-set cut-off voltage.

• Division spacing: 20 mm

• Tube diameter: 160 mm

• Filament voltage: 4 to 12 V DC

• Anode current: < 0.3 mA

• Diameter of fine beam path: 20 to 120 mm

• Filament current: 300 to 450 mA

• Anode voltage: 200 to 300 V

• Total height incl. base: 260 mm

• Base plate: 115 x 115 x 35 mm

• Weight: approx. 820 g
