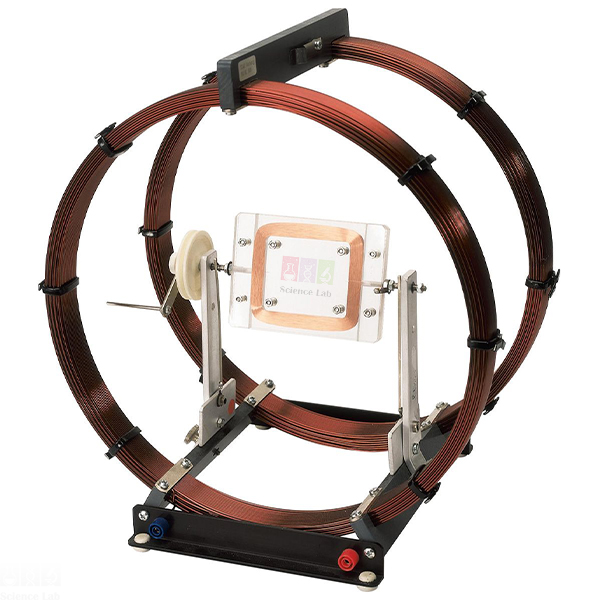

Helmholtz Coils for Use with Fine Beam Tube

Product Code : SCL-AAN-11398
Science Lab India is a leading Helmholtz Coils for Use with Fine Beam Tube Manufacturer,and suppliers in India, Helmholtz Coils for Use with Fine Beam Tube Manufacturer,and suppliers in South Africa.Helmholtz Coils for Use with Fine Beam Tube Suppliers in Mozambique,Helmholtz Coils for Use with Fine Beam Tube in Supplier Kenya, Argentina (Buenos Aires), Australia (Canberra), Austria (Vienna), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb)

A spring clip on the top crossbar is used to mount the Hall sensor during measurements of the magnetic field.
The Pair of Helmholtz coils is used for generating a homogeneous magnetic field and for the determination of the specific charge of the electron e/m in conjunction with the dual-beam tube.
The coils can be switched in parallel or in series.
The maximum field strength generated by the coils (~ 4 mT) is approximately 750 times weaker than that produced by an machine (~3 T), which are known to be safe Science Lab India for use by people with medical implants such as pacemakers.
• Number of turns per coil: 124
• DC resistance: 1.2 ohms each
• Coil Dimensions (Dia.): 295mm
• Coil spacing: 150 mm
• Maximum flux density at 5 A: 3.7 mT
• Weight: 4.1 kg approx.
• Maximum coil current: 5 A
• Maximum coil voltage: 6 V
