Bell in a Jar Experiment Manufacturer,Supplier and Exporter in India

Product Code : SCL-VAW-11280
Science Lab India is a leading Bell in a Jar Experiment Manufacturer,and suppliers in India, Bell in a Jar Experiment Uruguay (Montevideo), Bell in a Jar Experiment Uzbekistan (Tashkent), Bell in a Jar Experiment Venezuela (Caracas), Bell in a Jar Experiment Vietnam (Hanoi), Bell in a Jar Experiment Yemen (Sana'a), Bell in a Jar Experiment Zambia (Lusaka), Zimbabwe (Harare), Eswatini (Mbabane) (Lobamba), Ethiopia (Addis Ababa), Fiji (Suva), Gabon (Libreville), Gambia (Banjul), Georgia (Tbilisi), Ghana (Accra), India (Delhi, Mumbai, Kolkatta, Chennai), Indonesia (Jakarta), Iraq (Baghdad), Ivory Coast (Yamoussoukro), Jamaica (Kingston), Jordan (Amman), Kazakhstan (Astana), Kenya (Nairobi), Kiribati (Tarawa), Kosovo (Pristina), Kuwait (Kuwait City), Kyrgyzstan (Bishkek), Laos (Vientiane), Latvia (Riga), Lebanon (Beirut), Lesotho (Maseru), Liberia (Monrovia), Libya (Tripoli), Lithuania (Vilnuis), Luxembourg (Luxembourg), Malawi (Lilongwe), Malaysia (Federal Territory of Kuala Lumpur), Maldives (Malle), Mali (Federal Territory of Kuala Lumpur), Malta (Male), Mauritania (Nouakchott), Mauritius (Port Louis), Mexico (Mexico City), Mongolia (Ulaanbaatar), Bulgaria (Sofia), Burkina Faso (Ouagadougou), Burundi (Gitega), Cambodia (Phnom Penh), Cameroon (Yaoundé), Cape Verde (Praia), Central African Republic (Bangui), Chad (N'Djamena), Chile (Santiago), Colombia (Bogota), Comoros (Moroni), Congo (Kinshasa), Costa Rica (San José), Croatia (Zagreb), Cuba (Havana), Cyprus (Nicosia), Czech Republic (Prague), Denmark (Copenhagen) ,Djibouti (Djibouti City), Dominican Republic (Santo Domingo), DR Congo (Kinshasa), Ecuador (Quito), Egypt (Cairo), El Salvador (San Salvador), Equatorial Guinea (Malabo), Eritrea (Asmara), Estonia (Tallinn)

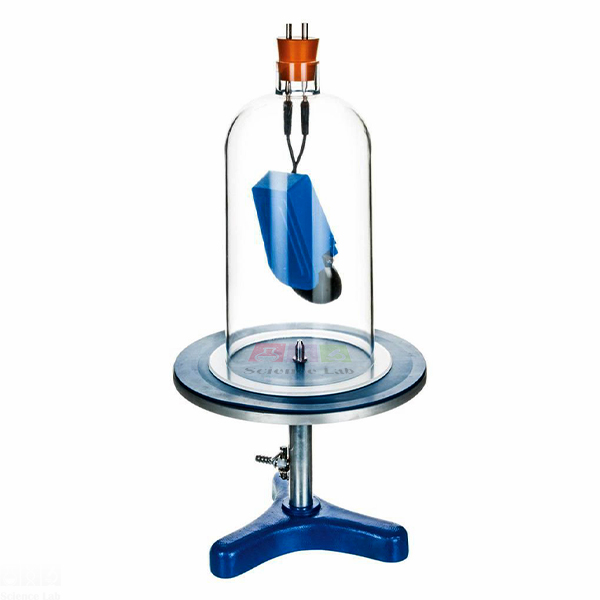

The pump plate is lightweight aluminium, mounted on a heavy tripod base, with a tube connection to the central pillar to evacuate air from the bell jar on top.

A stopcock allows the chamber to be sealed, allowing the vacuum to be kept when turning off the pump.

An improved version of the classic Science Lab India Bell in a Jar experiment.

The bell jar is robust acrylic which is safe in the event of implosion, and has a flat flange to ensure a good seal with the pump plate.

The base is fitted with a rubber sheet which ensures a good seal between the jar and pump plate, without the need for vacuum grease.

The bell is suspended by wires to reduce conduction of sound to the bell jar. Connection is by 4 mm sockets on the top bung.

The bell can be heard getting quieter as the air is evacuated.

Then, by closing the tap, turning off and disconnecting the pump, and then slowly allowing the air back in, the bell can be heard getting louder, as air is required to conduct the sound.

The high-quality bell operates on 4-6 V DC or AC. Requires a suitable vacuum pump, and heavy-walled vacuum/pressure tubing.

Dimensions:

Bell Jar

• Internal diameter 140 mm

• External diameter flange 180 mm

• Height 260 mm to neck

Pump Plate

• Diameter 250 mm

• Height 195 mm
